    BicicletaseTrailOrbea RiseOrbea Rise Lt H10 Diamond Black/Splash Olive Green Matt
    Bicicletas Navidad 2025

    *The images are indicative and may vary from the actual product. Some accessories may not be included or components may be different. Check the components section within the product features

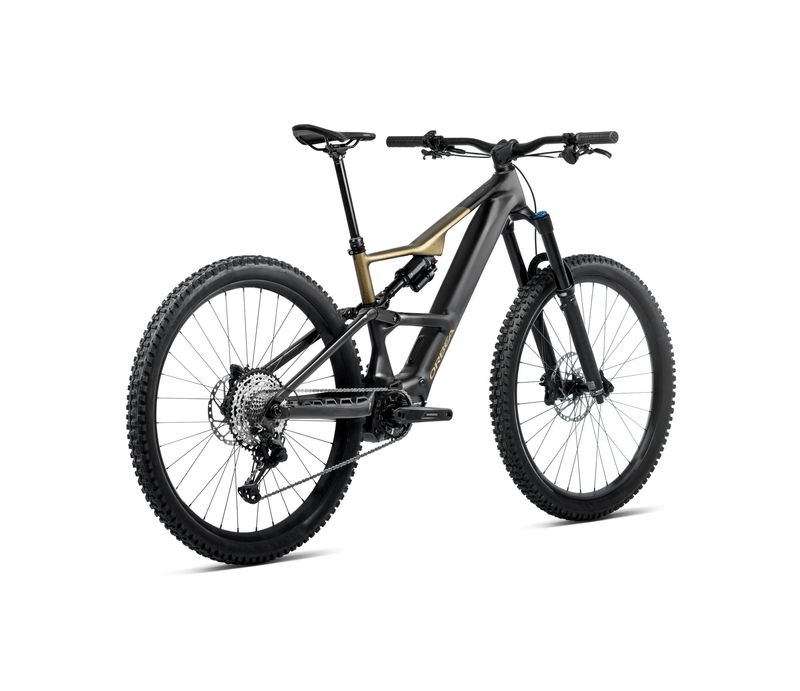

    Orbea Rise Lt H10 Diamond Black/Splash Olive Green Matt

    Loading reviews...
    Ref: S33503ST
    Ean: 8434446785900

    .

    Sizes
    S
    M
    L
    This product isn't available right now
    I want to know when this product becomes available

    RISE LT H10

    The eMTB that devours trails. Rise LT offers 160mm/150mm of travel with progressive trail geometry. Our 630Wh battery comes standard, but you can optionally choose the 420Wh one.

    The Shimano EP motor features our latest Rs GEN2 MC firmware that enables the most natural pedaling experience.

    THE BEST HAS JUST ARRIVED

    Rise is ready to revolutionize the lightweight e-bike market once again. Slimmer and more precise than ever, with more energy stored in every gram. It’s more manageable, more powerful, and has greater range. Our renewed Rider Synergy offers more control than ever, as well as an unmatched experience regardless of the type of trail you ride.

    *POLISHED ALUMINUM*

    Every weld on the frame is polished so smoothly that it rivals the aesthetics of a carbon frame, but it's also important to highlight the polishing action on the welds that increases fatigue resistance at these demanding points.

    *TUNED STIFFNESS/HIGH-PERFORMANCE HANDLING*

    To achieve the best handling, bikes need the right stiffness in the right places. The new asymmetrical design of the Rise frame is key to fine-tuning its stiffness. The result is predictable performance when you’re giving it your all.

    *THE NEW RIDER SYNERGY*

    Rider Synergy (RS) is the heart of Rise. The most natural and elastic assistance with the best battery range for the most extreme adventures. Now, Rise takes this even further with the option to increase torque up to 85Nm.

    *STEEP N DEEP*

    Lower the saddle to the max so your body gains space to move and even greater control. With Rise, you can have a post of up to 230mm. Long-travel posts are the only solution!

    *FURTHER, FASTER*

    The natural assistance RS Gen2 works with you, engaging you in the ride, providing assistance when you need it, and saving battery when you don’t.

    See details

    General
    Season
    2025
    Frame
    Frame
    HYDRO
    Fork
    Fox 36 Float Performance 160 Grip 3-Pos QR15x110
    Shock
    Fox Float X Performance 2-Pos Evol LV custom tune 210x55mm
    Material
    Carbon
    Cockpit
    Handlebars
    OC Mountain Control MC31, Rise20, Width 800
    Stem
    OC Mountain Control MC20, 0º
    Steering
    Alloy 1-1/2", Black Oxidated Bearing
    Grips
    OC Lock On
    Brakes
    Front Brake
    Shimano M6120 Hydraulic DiscDisc brake with hydraulic actuation
    Rear Brake
    Shimano M6120 Hydraulic DiscDisc brake with hydraulic actuation
    Saddle Components
    Saddle
    Fizik Terra Ridon X5 145mm
    Saddle Post
    OC Mountain Control MC22, 31.6mm, Dropper
    Seatpost Remote
    Shimano SL-MT500 I-Spec EV
    Drivetrain
    Rear Derailleur Levers
    Shimano SLX M7100 I-Spec EV
    Rear derailleur
    Shimano XT M8100 SGS Shadow Plus
    Bottom Bracket
    Shimano Steps EM600
    Cassette
    Shimano CS-M7100 10-51t 12-Speed
    Chain
    Shimano M6100
    Chain Guide
    Orbea Rise chainguide
    Gears
    1x12
    Wheels
    Front Wheel
    Race Face AR 30c Tubeless Ready
    Rear Wheel
    Race Face AR 30c Tubeless Ready
    Front Tyre
    Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
    Rear Tyre
    Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
    eBike Components
    eBike motor
    Shimano EP801 RS Gen2 MC
    eBike Battery
    Orbea Internal 630Wh
    eBike Charger
    Orbea 2.Generation eBike Smart charger 42V/2-4A
    Ui/Remote
    EN600-L
